| DL-06 66/T (The Sound Champions ) |
 |

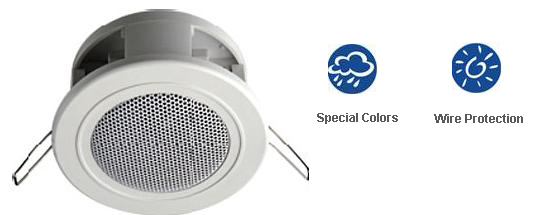

| The small, attractive metal ceiling speakers DL 06-66/T in white with 66 mm full range speaker, offer an excellent sound. |
| Features : |
 It's fire resistant housing, made of impact resistant UL 94-V0 ABS plastics, provides additional operating safety for the DL 06-66/T. |
| The DL 06-66/T is suitable for the combination with halogen spotlights and offer a harmonic design. |
|
| Technical Specifications: |
| Technical Specifications |
DL-06 66/T |
| Power |
6 / 3 / 1.5W |
| Frequency Range |
100-21000 Hz |
| SPL 1W / 1m |
89.8dB |
| SPL Pmax / 1m |
97.6dB |
| Dimensions |
104 X 83mm |
| Ceiling Cut-out |
92mm |
| Temperature Range |
-200 C to 800 C |
| Dispersion Angle (-10dB) |
1750 (H) / 1750 (V) |
| Weight |
0.7 Kg. |
| Mounting |
Quick Fit Mounting |
| Colour |
RAL 9010 (White) |
|
| |
