DL 06-130/T ( Small and Powerful)

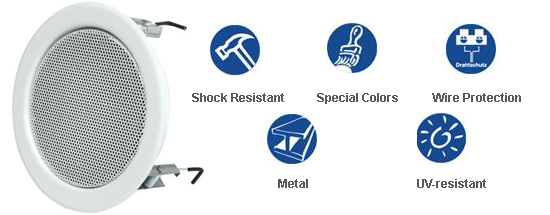

Classic ceiling speaker made of metal with a high efficiency & high quality 130mm full range speaker chassis.
Features :
The mounting system has been improved once more: 3 spring clamps with cropped leg spring, increased clamp force and shortened tension distance. This allows a quick and easy mounting. A plain installation in    false ceilings won't cause problems anymore.
The DL range is certified with fire protection class B2 according to the German Industry Norm DIN 4102, part 8 Ωf component part test and DIN 4102, part 1 of the B2-test for construction material. All metal   versions of our products have successfully passed these building material tests, and can therefore be   classified as fire resistant. The test consisted of installing the speakers with fire safety box in a ceiling   (same flame retardant material) and heating them at a temperature of 580° to over 1000° C. Optionally   you can use a fire dome F 130.
You can order all ceiling speakers in any RAL-colour at surcharge.
RoHS Compliant.
Technical Specifications :
Technical Specifications:
Technical Specifications DL-06 130/T
Power 6 / 3 / 1.5W
Frequency Range 90-15,000 Hz
SPL 1W / 1m 93dB
SPL Pmax / 1m 101dB
Dimensions 180 X 100mm
Ceiling Cut-out 166mm
Temperature Range -200 to +800C
Dispersion Angle (-10dB) 1800 (H) / 1800 (V)
Weight 1.0 Kg.
Mounting Quick fit mounting
Colour RAL 9010
