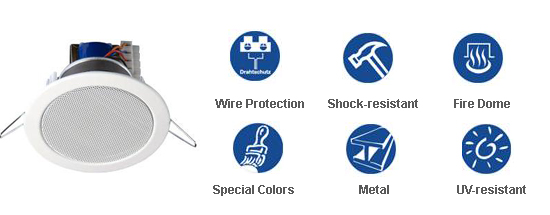

| DL-06 77/T (The Small Ones! -Ceiling Speakers) |
 |
| The small, attractive metal ceiling speakers DL 06-77/T in RAL 9016 with 77 mm full range speaker, offer an excellent sound. |
| Features : |
 The DL 06-77/T made of metal convinces with its unobtrusive appearance. |
| The DL 06-77/T is suitable for the combination with halogen spotlights and offer a harmonic design. |
| Suitable for clean room applications. |
| Technical Specifications: |
| Technical Specifications |
DL-06 77/T |
| Power |
6 / 3 / 1.5W |
| Frequency Range |
133-18507 Hz |
| SPL 1W / 1m |
86.0dB |
| SPL Pmax / 1m |
95.5dB |
| Dimensions |
104 X 77mm |
| Ceiling Cut-out |
92mm |
| Dispersion Angle (-10dB) |
180 0 (H) / 1800 (v) |
| Weight |
0.65 Kg. |
| Mounting |
Quick fit mounting |
| Colour |
RAL 9016 |
|
| |
