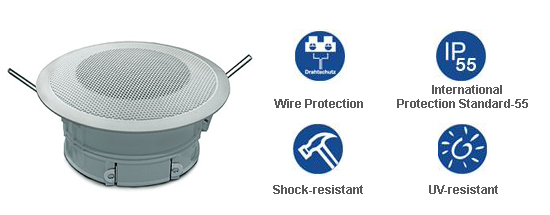

| DL-P 06 100/T (The UV-barrier) |
 |
| Profitable, modern ceiling speakers made of ABS plastic with high efficiency 100mm (DL-P 06/100/T) full range speaker. This attractive polymer speaker features the "one hand easy mounting" principle. |
| Features : |
 The DL-P has all the advantages of the POM plastic: because of the excellent shock-resistance the speaker is stable even after years of usage. The lightweight of the material makes easy mounting possible. |
| Innovative-cropped springs for quick mounting, increased clamp force and shortened tension distance. |
| We guarantee a fire resistance according to UL94-V0 and IP44. |
| RoHS Compliant. |
|
| Technical Specifications: |
| Technical Specifications |
DL-P 06 100/T |
| Power |
6 / 3 / 1.5W |
| Frequency Range |
90-18,800 Hz |
| SPL 1W / 1m |
92.7dB |
| SPL Pmax / 1m |
100.5dB |
| Dimensions |
150 X 72mm |
| Ceiling Cut-out |
126mm |
| Temperature Range |
-20 0 to +800C |
| Dispersion Angle (-10dB) |
1800 (H) / 1800 (V) |
| Weight |
0.52 Kg. |
| Protection Class |
IP44 Certified |
| Mounting |
Snap System |
| Colour |
RAL 9010 |
|
| |
