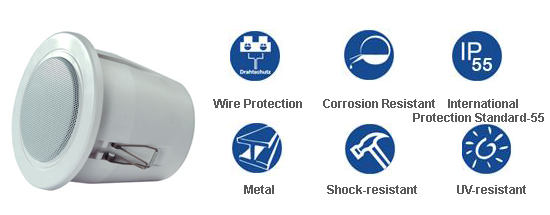

| DL-SF 06 100/T (The Small Ones! -Ceiling Speakers) |
 |
| The small, attractive metal ceiling speakers DL SF 06-100/T available in RAL 9016 and with a 100mm full range speaker, offer an excellent sound. |
| Features : |
 It's fire resistant housing, made of impact resistant UL 94-V0 ABS plastics, provides additional operating safety for the DL-SF 06-100/T. |
| The DL-SF 06-100/T is splash proof according to IEC 529, IP55, and therefore ideal for installations in damp locations such as bathrooms, etc. |
| Furthermore the DL-SF 06-100/T is also suitable for clean room applications as often required in medical complexes as well as in the field of microelectronic production. |
| As an additional advantage the DL-SF 06-100/T offers you the possibility of switching between 100V or 8Ohm operation through the connecting cable at the backside. |
|
| Technical Specifications: |
| Technical Specifications |
DL-SF 06 100/T |
| Power |
6 / 3 / 1.5W |
| Frequency Range |
150-20000 Hz |
| SPL 1W / 1m |
88.0dB |
| SPL Pmax / 1m |
95.0dB |
| Dimensions |
104 X 135mm |
| Ceiling Cut-out |
129mm |
| Temperature Range |
-20 0 to +800C |
| Dispersion Angle (-10dB) |
2100 |
| Weight |
0.96 Kg. |
| Protection Class |
IP55 certified |
| Colour |
RAL 9016 |
|
| Dimensions : |
 |
| |
