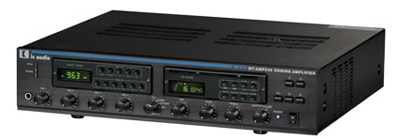

MT-AMP 240 CDT (Zone Amplifier: 4 Zones)
Features :
The mixer amplifier MT-AMP 240 CDT is ideal to be connected to up to four microphones (XLR) and one external line source (cinch).
It is equipped with the plug in modules CD-Player and tuner.
Powered with 240W this mixer amplifier is the optimum »All-in-one solution« for small up to medium-sized projects.
General announcements or alerts can be addressed by push buttons to four zones.
Besides the precise volume control for each input channel the MT-AMP 240 CDT offers fine adjustment of bass and treble.
To connect the speakers you can choose between 25V, 70V, 100V and 8 Ωhm outputs.
A blue power-LED and a three digit LEDVU meter are informing you about the operational readiness and the output level of the 240 Watt powered mixer amplifier.
The MIC1 input is equipped with a vox function, which mutes all other inputs when the connected microphone is in use. Via internal jumpers phantom power (18V) can be added to the MIC - inputs.
The MT-AMP 240 CDT can be supplied from a 24V emergency power source.
19" installation frames (for rack-mounting) are available.
Technical Specifications:
Technical Specifications MT-AMP 240 CDT
Power 240W
Frequency Range MIC1~MIC4: 60Hz~15KHz+3dB
Inputs MIC1~MIC4: 250W, 1mV, symmetric +
phantom power selectable (Jump1)
AUX: 200mV, 47KW unbalanced;
Tel: 0.1~1V, 600W, adjustable, balanced
Outputs Speaker Outputs: Music / Speech: 8W, 25V, 70V, 100V selectable;
Line Out: 600W, 1V;
Mon Output: 8W, 1Watt / 600W, 1V balanced.
THD Less than 1% at 1KHz, rated power
Mains/Battery Voltage AC 115V/230V 50/60Hz +10% selectable
DC 24V (Max 10% deviation)
Power Consumption 760W
Dimensions 88 X 430 X 300
Weight 13 Kg.
