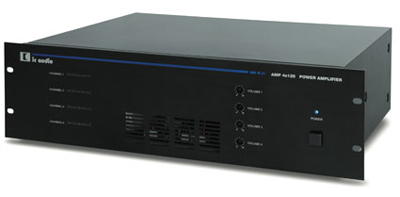

| AMP 240 (The Versatile 4-Channel Power Amplifier) |
 |
| The 4-channel power amplifier AMP 4 x 120 is specially designed for the application in public buildings, schools or coliseums. |
| Features : |
 The amplifier with 4 x 120 Watt is protected against overload and short circuit. |
| A fan provides for thermal stability. The output level is shown by a LEDVU Meter. |
| With the speaker outputs of 70V, 100V and 8 Ωhm the AMP 4 x 120 can be recommended for all kinds of installation condition. |
| 1 XLR, 1 x ¼" Jack and a 2 x cinch connectors for incoming signals are available for each channel. |
| The 19" housing (3U) allows for space saving mounting in racks. |
| Technical Specifications: |
| Technical Specifications |
AMP 4 x 120 |
| Power |
4 x 120W |
| Frequency Range |
50Hz ~ 20000Hz +3dB |
| Inputs |
Line Input: 1V, 47kΩ hm
Symmetrisch, unsymmetrisch,
Balanced, unbalanced |
| Outputs |
8 Ωhm, 100V (70V / 100V Selectable) |
| THD |
Less than 1% at 1KHz, rated power |
| Mains/Battery Voltage |
AC 230V/240V 50/60Hz
DC 24V (MAX 10% deviation) |
| Power Consumption |
1100W |
| Dimensions |
133 X 483 X 380mm |
| Weight |
25.5 Kg. |
|
| |
