| DL K 20-165/T (The Small Ones! -Ceiling Speakers) |
 |
|

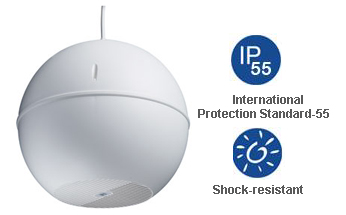

The DL K 20-165/T is a well-shaped, sphere speaker with a high efficiency full range 165mm speaker chassis and a UV-resistant ABS housing in white (similar to RAL 9010). Complying to the IP35 (IEC 529) Standard the sphere speaker is well equipped for a challenging environment. |
| Features : |
 The connection of the DL-K 20-165/T will be done with a 5m long, 2-pin cable, with up to 40 kg tensile strength. Power adjustments can easily be done by turning an adjustment knob at the top of speaker. The operation in low impedance mode is also possible. |
| RoHS Compliant. |
| Technical Specifications: |
| Technical Specifications |
DL K 20-165/T |
| Power |
20 / 15 / 10 / 5 / 2.5W |
| Frequency Range |
189-11876 Hz |
| SPL 1W / 1m |
97.7dB |
| SPL Pmax / 1m |
116.8dB |
| Dimensions |
232 X 104mm |
| Ceiling Cut-out |
0mm |
| Temperature Range |
-20 0C to 1500 C |
| Dispersion Angle (-10dB) |
240 0 (H) / 240 0 (v) |
| Weight |
2.90 Kg. |
| Colour |
RAL 9010 |
|
| |
