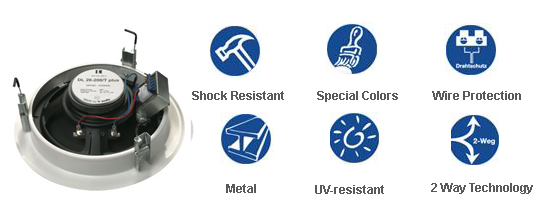

DL 20 200/T-Plus (The Small Ones! -Ceiling Speakers)
The ceiling speakers DL 20-200T Plus made of powder-coated metal in white (RAL 9010) offer an excellent sound because of the modern 2-way technology.
Features :
These high quality speakers have a very low installation depth combining the powerful sound with easy handling.
The mounting system has been improved further: spring clamps with cropped legs, increased clamp force and shortened tension distance. This allows quick and easy mounting and a plain installation in false ceilings with different thickness won't cause problems anymore.
The DL 200 is certified with fire protection class B2 according to DIN 4102, part 8 Ωf the component part test and DIN 4102, part 1 of the B2-test for construction material. All metal versions of our products have successfully passed these building material tests, and can therefore be classified as Fire Resistant. The test consisted of installing the speakers with fire safety box in a ceiling (same flame retardant material) and heating them at a temperature of 580o C to 1000o C
You can order all ceiling speakers in any RAL-colours at surcharge.
Technical Specifications:
Technical Specifications DL 20 200/T-Plus
Power 20 / 15 / 10 / 5W
Frequency Range 80-14300 Hz
SPL 1W / 1m 103.1dB
SPL Pmax / 1m 110.8dB
Dimensions 267 X 100mm
Ceiling Cut-out 238mm
Temperature Range -20 0C to 800 C
Dispersion Angle (-10dB) 180 0 (H) / 1800 (v)
Weight 2.24 Kg.
Mounting Quick fit mounting
Colour RAL 9010
