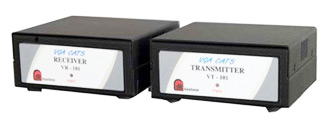

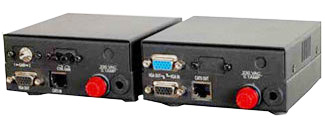

| VGA OVER CAT - 5 (VT101)BACK |
| VGA OVER CAT-5 is a unit whereby you can extend a Projector / PLASMA / LCD / TFT / VGA device display up to 150 meter (450 feet) from the main PC or laptop on a very cheap CAT-5 or CAT-6* cables. The ultimate out of band solution for the last step in digital signage set up. The VGA Extenders are quicker and most efficient way to more multimedia from main device to displays. |
 |
 |
| Features: |
 Distribution of any type of display over flexible CAT-5 / CAT-6 cable. |
High Resolution Support depending on the length up to 1600x1200 @ 75 Hz |
| Extend display up to 150 Meter / 490 feet. |
Models: VT101 (1 in 1 out ) / VT 104 (1 in 4 out) |
| One year Warranty. |
|
| Technical Specifications: |
| Resolution |
Up to 1600 x 1200 depending |
| Input /Output |
Analog Signals RED, Green, Blue 0.7V, P-P @ 75 ohm. |
| Transmitter inputs |
D-Sub 15 Female input local out and CAT-5 out |
| Receiver outputs |
D-Sub 15 Female output and CAT-5 in |
| Sync |
TTL Compatible. |
| Shipping Weight |
1.5 Kg. |
| Operating Temperature |
5oC to 40oC |
| Storage Temperature |
-40oC to 70oC |
| Dimension |
100mm x 108mm x 45mm / 3.9" x 4.25"x 1.77" x 2 UNIT |
| Power |
230V A.C. |
|
| |
| |
