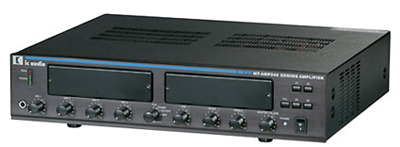

| MT-AMP 240 (Zone Amplifier: 4 Zones) |
 |
| Features : |
 The mixer amplifier MT-AMP 240 is ideal to be connected to up to four microphones (XLR) and one external line source (cinch). |
| Powered with 240W this mixer amplifier is the optimum »All-in-one solution« for small up to medium-sized projects. |
| General announcements or alerts can be addressed by push buttons to four zones. |
| Besides the precise volume control for each input channel the MT-AMP 240 offers fine adjustment of bass and treble. |
| To connect the speakers you can choose between 25V, 70V, 100V and 8 Ωhm outputs. |
| A blue power-LED and a three digit LEDVU meter are informing you about the operational readiness and the output level of the 240 Watt powered mixer amplifier. |
| The MIC1 input is equipped with a vox function, which mutes all other inputs when the connected microphone is in use. Via internal jumpers phantom power (18V) can be added to the MIC - inputs. |
| The MT-AMP 240 can be supplied from a 24V emergency power source. |
| 19" installation frames (for rack-mounting) are available. |
|
| Technical Specifications: |
| Technical Specifications |
MT-AMP 240 |
| Power |
240W |
| Frequency Range |
MIC1~MIC4: 60Hz~15KHz+3dB |
| Inputs |
MIC1~MIC4: 250W, 1mV, symmetric +
phantom power selectable (Jump1)
AUX: 200mV, 47KW unbalanced;
Tel: 0.1~1V, 600W, adjustable, balanced |
| Outputs |
Speaker Outputs: Music / Speech: 8W, 25V, 70V, 100V selectable;
Line Out: 600W, 1V;
Mon Output: 8W, 1Watt / 600W, 1V balanced. |
| THD |
Less than 1% at 1KHz, rated power |
| Mains/Battery Voltage |
AC 115V/230V 50/60Hz +10% selectable
DC 24V (Max 10% deviation) |
| Power Consumption |
760W |
| Dimensions |
88 X 430 X 300 |
| Weight |
13 Kg. |
|
| |
