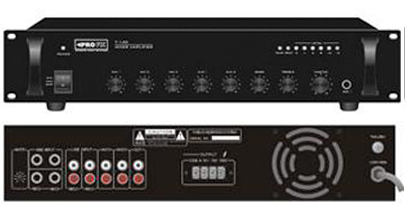

| Profx-T-60 (60 Watt Mixer Amplifier) |
 |
|
Pro FX range of Public Address mixer amplifiers have power rating from 60 watts and feature optional balanced MIC inputs, AUX level inputs and EMC (priority) level inputs. |
| Features : |
 Rated outputs 60W. |
| 100V / 70V line transformer-isolated speaker outputs, low impedance 4-16 Ωhms speaker outputs. |
| Two EMC priority input. |
| Two stereo aux input and two-line output. |
| EMC input with priority over all other inputs except MIC 1. |
| AUXC, MIC, Tuner, Bass, treble volume control. |
| MIC 1 mute level control. |
| Power and protection indicators and 6 output level meters. |
| Technical Specifications: |
| Technical Specifications |
Profx-T-60 |
| Rated Power Output |
60W |
| Speaker Outputs |
4~16 Ωhms, 70V / 100V |
| Inputs |
MIC 1, 2, 3: 5mV / 600W, Balanced / Unbalanced
AUX 1, 4: 250mV / 15w Unbalanced
EMC 1, 2: 250mV / 15Kw Unbalanced |
| TONE |
Bass: 10dB at 100Hz
Treble: 10dB at 10KHz |
| Frequency response |
50 Hz ~ 15KHz |
| S/N Ratio |
MIC 1,2, 3: 66dB; AUX1, 2: 80dB |
| T.H.D |
Less than 1% at 1KHz, 1/3 rated power |
| Cross Talk |
MIC: 80dB, AUX: 85dB |
| Muting Function |
MIC1 over other input signals with 0-30dB Attenuation EMC1 over all inputs except MIC1. |
| Controls |
Individual gain controls, power switch |
| Indicators |
Power LED, LED level meter protect |
| Protection |
AC fuse, short-circuit and high temperature |
| Power requirements |
~220V + / - 10% 50Hz |
| Power Consumption |
100W |
| Dimensions (mm) |
484 x 360 x 88 |
| Net Weight |
7.31 Kg. |
| Gross Weight |
8.62 Kg. |
|
| |
