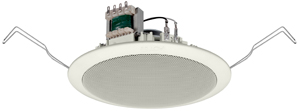

| PC-658R Ceiling Speaker |
| Description : |
| Integrated with a resin panel and speaker frame, the PC-658R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. |
 |
|
| Technical Specifications: |
| Rated Input |
6 W (100 V line), 3 W (70 V line) |
| Rated Impedance |
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity |
90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise) |
| Frequency Response |
65 - 18,000 Hz (peak -20 dB) |
| Speaker Component |
16 cm (6") cone-type |
| Dimensions for Fixing Hole |
Mounting hole: f170±5 mm (f6.69"±0.2")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method |
Spring clamp |
| Finish |
Baffle: Polypropylene resin, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color),
paint |
| Dimensions |
f192 × 73 (D) mm (f7.56" × 2.87") |
| Weight |
500 g (1.1 lb) |
| Accessory |
Paper pattern …1 |
|
| |
