| TS 50-780T (The Weather Proof Sound Column) |
 |
| Features : |
 The white sound column series includes sound columns in soft-line design. All columns are certified as ball proof according to DIN 18032, part 3. The housings are made of high quality and film-coated MDF-wood. |
| The tapping is done through a connector terminal block and a rotary switch for power adaptation. |
| The back plate of the housing is accurately glued into the frame without any disturbing screws. |
| The 6, high quality full range speaker with 10 OZ magnets produce an excellent sound with a distinct directivity. It is optionally available in 2-way technology with a powerful tweeter. |
| Technical Specifications : |
| Technical Specifications |
TS 50-780T |
| Power |
50 / 30 / 15W |
| Frequency Range |
150-13000Hz |
| SPL 1W / 1m |
100 dB |
| SPL Pmax / 1m |
117dB |

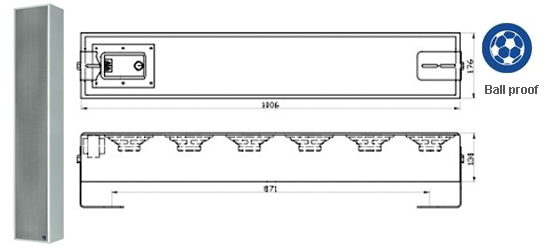

| Dimensions |
1006 X 176 X 130 |
| Temperature Range |
-20 / +800 C |
| Dispersion Angle (-10dB) |
230 0 (H) / 70 0 (v) |
| Weight |
11.1 Kg. |
| Mounting |
Wall Mounting bracket |
| Colour |
White |
|
| |
