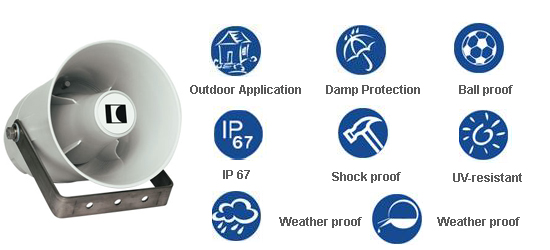

| DK 30/T (Powerful Horn Speaker) |
 |
| A reliable and UV-resistant horn speaker in light gray (similar to RAL 7035). The DK is provided with a one-meter cable. |
| Features : |
 The enormous sound pressure, high weather-resistance and broad frequency range are ideal for industrial and outdoor use! |
| The new DK 30/T delivers powerful sound. |
| The international protection norm IP66 ensures reliability even in challenging environments. The DK-series is made of shock-resistant ABS plastic according to UL94V0, which guarantees enduring stability. |
| Beside the massive sound pressure levels you can also benefit from the flexible power adjustment. The adjustment can easily be made on back of the speaker. For our international customers, we are offering a 70V tapping for the complete DK-Series. |
| Technical Specifications: |
| Technical Specifications |
DK 30/T |
| Power |
30 / 20 / 10 / 5W |
| Frequency Range |
300 – 6,000 Hz |
| SPL 1W / 1m |
110.1dB |
| SPL Pmax / 1m |
124.9dB |
| Dimensions |
237 X 287mm |
| Temperature Range |
50 0 C / 100 0 C |
| Dispersion Angle (-10dB) |
130 0 (H) / 130 0 (V) |
| Weight |
2.60 Kg. |
| Protection Class |
IP66 certified |
| Mounting |
V2A Universal Bracket |
| Colour |
RAL 7035 |
|
| |
