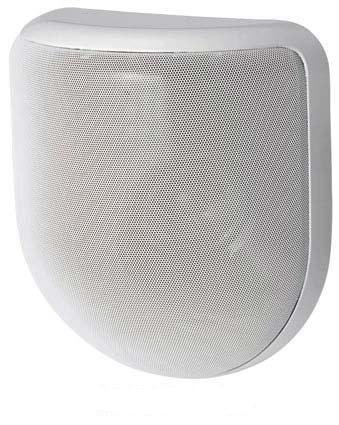

| HB-1 Wall/Ceiling Mount Subwoofer Speaker System |
 |
| The HB-1 is a high-power, wall/ceiling-mounted subwoofer system employing a 20 cm speaker unit. Although small in size, the HB-1 provides clear super-low frequency sound reproduction thanks to its Acoustic Super Woofer enclosure construction. |
| Technical Specifications: |
| Enclosure |
Acoustic Super Woofer |
| Power Handling Capacity |
240 W (Continuous program, 40 - 200 Hz)
80 W (Continuous pink noise, 40 - 200 Hz) |
| Rated Impedance |
8 Ω |
| Sound Pressure Level |
91 dB (1 W, 1 m) installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling or wall.)
85 dB (1 W, 1 m) installation in free sound field (Measured in anechoic chamber.) |
| Frequency Response |
45 - 200 Hz (-10 dB) installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling or wall.) |
| Speaker Component |
20 cm cone speaker |
| Input Terminal |
Detachable screw terminal, (+)/(-) 2 each (for bridging connection) |
| Usable Cable |
Solid cable, stranded cable: 0.2 - 2.5 m? (AWG No.24 - 14) |
| Finish |
Enclosure: Steel plate, black, paint
Front frame: Fire-resistant ABS resin, off-white, paint
Punched net: Steel plate, off-white, paint
Mounting bracket: Steel plate, black, paint |
| Dimensions |
430 (W) × 544 (H) × 135 (D) mm |
| Weight |
11 kg (including front grille and mounting bracket) |
| Accessory |
Front frame……1, Mounting bracket……1set, Anchor piece……2, Stud holder……4, Screw……1set |
| Option |
Matching transformer: MT-S0601 (rated 60 W) |
|
| |
