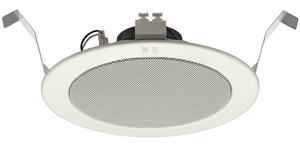

| PC-1869 Ceiling Mount Speaker |
| Description : |
| Integrated with a speaker unit and panel, the PC-1869 Ceiling Mount Speaker is of all metallic construction and ideal for use in a voice alarm system. It feature spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connections easy and allows bridge wiring. |
 |
|
| Technical Specifications: |
| Rated Input |
6 W (100 V line), 3 W (70 V line) |
| Rated Impedance |
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity |
90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise) |
| Frequency Response |
55 - 18,000 Hz (peak -20 dB) |
| Speaker Component |
12 cm (5") cone-type |
| Dimensions for Fixing Hole |
Mounting hole: f150±3 mm (f5.91"±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98") |
| Speaker Mounting Method |
Spring clamp |
| Applicable Cable |
600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: f0.8 - f1.6 mm (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25 m? (equivalent to AWG 18 - 16) |
| Connection |
Push-in connector (bridging terminal-2 branch type) |
| Finish |
Baffle: Steel plate, off-white (RAL 9010 or equivalent color), paint
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color),
paint |
| Dimensions |
f180 × 72 (D) mm (f7.09" × 2.83") |
| Weight |
620 g (1.37 lb) |
| Accessory |
Paper pattern …1 |
|
| |
