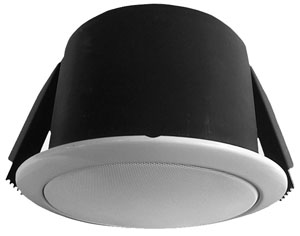

| PC-1867FC Ceiling Mount Speaker |
| Description : |
| The PC-1867FC Ceiling Mount Speaker features an iron-made dome that prevents the fire from spreading in the ceiling in case of an emergency situation. The speaker can be easily installed using the speaker mounting spring, and the dome can also be easily mounted in the speaker mounting hole in the ceiling panel. The PC-1867FC certificated European Standard EN 54-24 and complies with the British Standard BS 5839-8. |
 |
|
| Technical Specifications: |
| Coverage Angle(-6dB) |
500 Hz: 186?, 1 kHz: 178?, 2 kHz: 148?, 4 kHz: 76?,
according to EN 54-24 |
| Environmental Type |
A (indoor applications) according to EN 54-24 |
| Speaker Component |
12 cm (5) cone-type" |
| Dimensions for Fixing Hole |
±3
±0.12"
f156 (mounting hole) × 30 (maximum ceiling thickness) mm (f6.14 × 1.18)" |
| Speaker Mounting Method |
Spring catch |
| Applicable Cable |
Solid wire: f1.0 - f3.0 mm (AWG18-9) |
| Connection |
Screw connector (steatite terminal) bridging |
| Finish |
Baffle: Aluminum, off-white (RAL 9010 or equivalent color), paint
Grille: Aluminum net, off-white (RAL 9010 or equivalent color), paint
Dome mounting bracket: Steel plate, trivalent chromate treatment plating
Fire dome: Steel plate, black, painting |
| Dimensions |
f180 × 11 (exposed section) + 110 (D) mm (f7.09 × 0.43" + 4.33")" |
| Weight |
1.4 kg (3.09 lb) (bracket, fire dome included) |
| Accessory |
Rubber grommet …2, Paper pattern …1 |
|
| |
