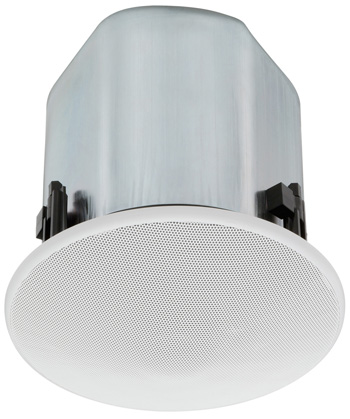

| Enclosure |
Bass reflex type |
| Rated Input |
30 W (High Impedance) |
| Power Handling Capacity |
Continuous pink noise: 60 W (8 Ω), 30 W (16 Ω)
Continuous program: 120 W (8 Ω), 60 W (16 Ω) |
| Impedance |
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
16 Ω, 8 Ω |
| Sound Pressure Level |
90 dB (1 W, 1 m) |
| Frequency Response |
70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.) |
| Speaker Component |
12 cm cone-type |
| Mounting Hole |
f200 mm (Maximum ceiling thickness: 37 mm) |
| Input Terminal |
Removable locking connector with screw-down terminals
(2 input terminals and 2 bridge terminals) |
| Usable Cable |
Solid copper wire: f0.5 - f1.6 mm (equivalent to AWG No. 24 - 14)
Stranded copper wire: 0.2 - 2.5 m? (equivalent to AWG No. 24 - 14) |
| Finish |
Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint |
| Dimensions |
f230 × 229 (D) mm |
| Weight |
3.7 kg (including mounting accessories) |
| Accessory |
Panel …1, Ceiling reinforcement ring …1, Safety wire …1, Paper pattern …1 |
| Option |
Digital processor: DP-0206, Anchor hanging bracket: HY-AH1,
Back can: HY-BC1, Tile bar bridge: HY-TB1, Trim ring: HY-TR1 |
|
