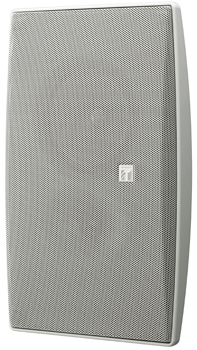

BS-634 Wall Mount Speaker
The BS-634 can be installed easily on the wall with help of the plug-in speaker receptacle.
Technical Specifications:
Rated Input 6 W
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
Sensitivity 90 dB (1 W, 1 m)
Frequency Response 120 - 18,000 Hz
Speaker Component 12 cm (5") cone-type
Input Connector M4 screw terminal, distance between barriers: 11 mm (0.43")
Finish Enclosure: HIPS resin (fire resistant grade UL94 V-0 or its equivalent),
off-white (RAL 9010 or equivalent color)
Net: Surface-treated steel plate, off-white (RAL 9010 or equivalent color), paint
Dimensions 210 (W) × 330 (H) × 80 (D) mm (8.27" × 12.99" × 3.15")
Weight 1.3 kg (2.87 lb)
Accessory Speaker receptacle …1, Wall mounting screw …2
