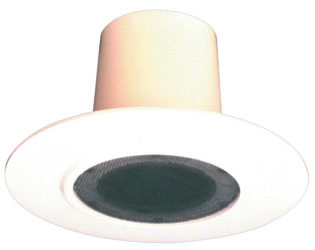

PC-3WR Splashproof Ceiling Speaker
Description :

The TOA PC-3WR is a completely-sealed, flush-mounted ceiling speaker employing a high power handling, splash-proof, small full-range speaker. It can be quickly installed by means of a spring catch system, reducing labor in construction work. Its ideal applications include washrooms, locker rooms of the pool, and other humid locations


Technical Specifications:
Rated Power 3 W, 1 W
Rated Impedance 3.3 kΩ (3 W), 10 kΩ (1 W)
Sound Pressure Level 88 dB (1 W, 1 m)
Frequency Response 180 - 20,000 Hz
Ambient Temperature -10 ? to +50 ?
Finish Frame and case: ABS resin, off-white
Punching net: stainless steel
Dimensions f180 × 120 (D) mm
Weight 700 g
Dimension for Fixing Holes f150 mm (The speaker can be mounted to the ceiling panel with
thickness of up to 50 mm)
