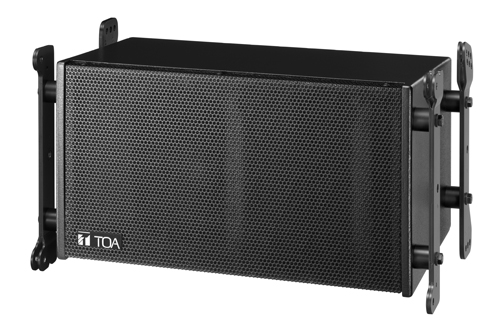

SR-C8L Line Array Speaker
The SR-C8SWP is a 2-way Line Array Speaker featuring wave front control technology which creates a sound field with high sound clarity and uniform sound pressure. It can be converted into the bi-amplifier drive system by changing the internal connection.
Technical Specifications:
Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 360 W (single-amp mode)
Low: 360 W, High: 180 W (bi-amp mode)
Rated Impedance 16 Ω (single-amp mode)
Low: 16 Ω, High: 16 Ω (bi-amp mode)
Sensitivity 98 dB (1 W, 1 m) (single-amp mode)
Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode)
Frequency Response 65 - 20,000 Hz (when driven with the optional DP-0206's recommended parameters)
Crossover Frequency 1,600 Hz (when driven with the optional DP-0206's recommended parameters)
Directivity Angle Horizontal: 110?, Vertical: 15?
Speaker Component Low frequency: 20 cm (8) cone-type"
High frequency: Wave front control horn 110? (horizontal) × 5? (vertical)"
+ compression driver × 2
Connected Cable Direct cable withdrawal from internal speaker: f8.6 mm (f0.34"),
conductor cross section: 1.25 m? (0.05")
4-core cable, 3 m (9.84 ft)
Water Protection IPX4
Finish Enclosure: Plywood, black, urethane coating
Front grille: Punched stainless steel, black, paint
Dimensions 526.6 (W) × 293 (H) × 294 (D) mm (20.73 × 11.54" × 11.57")"
Weight 16 kg (35.27 lb)
Accessory M8 connection bolt …4
Option Rigging frame: SR-RF8WP
Digital processor: DP-0206*
Digital Mixer: D-901
Digital Mixing Processor Unit: D-2008SP
