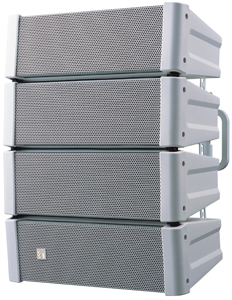

HX-5W-WP Compact Line Array Speaker System
The HX-5W-WP is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5W-WP is designed for outdoor use.
Technical Specifications:
Enclosure Sealed type
Power Handling Capacity Continuous pink noise: 200 W, Continuous program: 600 W
Rated Impedance 8 Ω
Sensitivity (1 W, 1 m) 96 dB (60? mode), 97 dB (45? mode), 98 dB (30? mode), 99 dB (15? mode)
Frequency Response 95 Hz - 20 kHz (-10 dB) (60%%d mode), 100 Hz- 20 kHz (-10 dB) (45%%d mode),
105 Hz - 20 kHz (-10 dB) (30%%d mode), 110 Hz - 20 kHz (-10 dB) (15%%d mode)
Crossover Frequency 4 kHz
Directivity Angle Horizontal: 100? (2 kHz or more)
Vertical: 60? (800 Hz or more), 45? (1.2 kHz or more), 30? (1.6 kHz or more),
15? (3.2 kHz or more) variable
Speaker Component Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Water Protection IPX4 (Install with the every speaker module downward.)
Operating Temperature -15 ? to +50 ?
Finish Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white, rust proof coating
Dimensions 408 (W) × 546 (H) × 342 (D) mm
Weight 16 kg
Accessory Hanging bracket …2, Hex. wrench …1
Option Matching transformer: MT-200
Speaker mounting bracket: HY-PF1WP, HY-CW1WP, HY-WM1WP, HY-WM2WP,
HY-CN1W-WP
