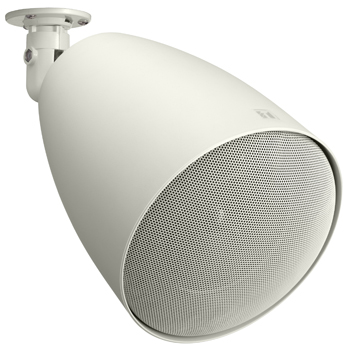

PJ-64 Projection Speaker
The PJ-64 is a projection speaker designed for ceiling and wall installations. Considered in architectural design, it can blend in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment. The PJ-64 is driven on high-impedance (100 V and 70 V) line. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
Technical Specifications:
Enclosure Bass-reflex type
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Frequency Response 100 - 18,000 Hz (peak -20 dB)
Speaker Component 12 cm (5") cone-type
Speaker Cord 2-core cabtyre cord 60 cm (1.97 ft) with diameter of 6 mm (0.24")
Finish Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Dimensions f186 × 369 (H) mm (f7.32" × 14.33")
Weight 1.5 kg (3.31 lb) (unit only)
Accessory Swivel bracket …1, Speaker mounting screw (4 × 16) …3
