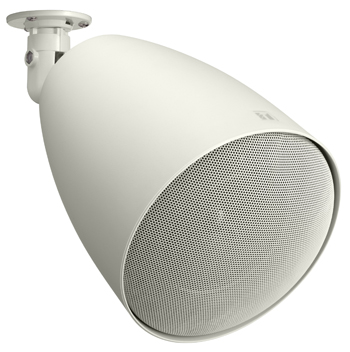

PJ-304 Projection Speaker
The PJ-304 is a projection speaker designed for ceiling and wall installations. Considered in architectural design, it can blend in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment. The PJ-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
Technical Specifications:
Enclosure Bass-reflex type
Rated Input 30 W (100 V, 70 V line, 8 Ω)
Rated Impedance 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
8 Ω
Sensitivity 91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Frequency Response 70 - 20,000 Hz (peak -20 dB)
Speaker Component 12 cm (5") cone-type + balanced dome-tweeter
Speaker Cord 2-core cabtyre cord 60 cm (1.97 ft) with diameter of 6 mm (0.24")
Finish Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Dimensions f186 × 369 (H) mm (f7.32" × 14.33")
Weight 2.1 kg (4.63 lb) (unit only)
Accessory Swivel bracket …1, Speaker mounting screw (4 × 16) …3
