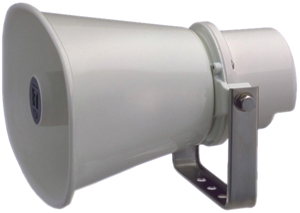

The SC-615 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.
Technical Specifications:
Rated Input
15 W (Mobile Mount use: 10 W)
Rated Impedance
8 Ω
Sound Pressure Level
112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response
280 Hz - 12.5 kHz
Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm )
-22 dB at 1 kHz
Dust/Water Protection
IP65
Polarity
Hot: Black , Com: White
Operating Temperature
-20 ? to +55 ? (must be free from dew condensation)
Finish
Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions
222 (W) × 179 (H) × 234 (D) mm
Weight
1.1 kg
Option
Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
