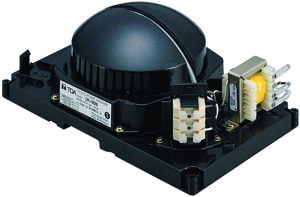

CM-760 Separate Type Ceiling Speaker
Description :
The CM-760 speaker allows selection of most suitable front panel out of the CP-70 series panels (optional) depending on the installation place. Thanks to its coil spring catch method, the panel can be easily attached to the speaker. The CM-760 comes with a push-in connector which permits instant wire connection for bridging and branch wiring. The speaker is protected by a hard speaker cover.
Technical Specifications:
Rated Input 6 W
Rated Impedance 1.7 kΩ (6 W), 3.3 kΩ (3 W),
(6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 100 - 16,000 Hz
Speaker Component 12 cm dynamic cone-type speaker
Dimensions for Fixing Hole f150 (mounting hole) × 50 (ceiling thickness) mm
Speaker Mounting Method Spring catch
Applicable Cables 600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: f0.8 - f1.2 mm
7-core twisted copper wire: 0.75 - 1.25 m?
Connection Push-in connector (Bridging and branch connections possible.)
Finish Grille: Fire-resistant, high-impact styrene resin
(resin material grade: UL94 V-O or its equivalent), black
Dimensions 215 (W) × 134 (H) × 89 (D) mm
Weight 630 g
Applicable Panel CP-70 series panel (option): CP-73, CP-77
