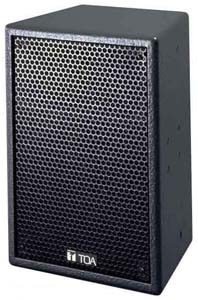

| SR-F05 Speaker System |
| Description : |
The SR-F05 is a 2-way speaker system featuring high power handling capacity, high quality sound, and heavy-duty construction. This speaker system is used with the DP-0206 Digital processor.
|
 |
|
| Technical Specifications: |
| Enclosure |
Bass-reflex type |
| Power Handling Capacity |
450 W (continuous program)
150 W (continuous pink noise) |
| Nominal Impedance |
8 Ω |
| Sensitivity |
99 dB (1 W, 1 m) |
| Frequency Response |
60 Hz - 18 kHz |
| Crossover Frequency |
2 kHz (passive) |
| Speaker Component |
Low frequency: 25 cm dia. cone-type
High frequency: CD horn (90? horizontal × 40? vertical) fitted with
compression driver |
| Input Connector |
M5 screw terminal, distance between barriers: 13 mm
Neutrik NL4MP × 2 |
| Finish |
Enclosure: MDF, dark gray, urethane coating
Front grille: Black, acrylic paint |
| Dimensions |
315 (W) × 444 (H) × 241 (D) mm |
| Weight |
18 kg |
|
| |
